A geometrically scalable double split ring resonator absorber engineered for predictable multi-frequency optical absorption through controlled resonator scaling.
The proposed absorber uses a DSRR printed above a dielectric spacer and continuous silver ground plane. The ground suppresses transmission, while the split-ring geometry produces LC resonances and confines electromagnetic energy. Instead of rebuilding the topology for every operating point, the resonator dimensions are systematically scaled to tune the response.
The study reports designed resonances at 423, 518, 640 and 831 THz, with absorption approaching unity at the target resonances.
02
INTERACTIVE DSRR LAB
Scale the resonator. Move the resonance.
Select one of the four designs to see the actual dimensions reported in the thesis. The live model rescales the concentric DSRR geometry and animates incident optical energy toward the absorber.
INTERACTIVE OPTICAL LAB423 THzFDTD · NORMAL INCIDENCE
ABSORBER STACK
Ag DSRRpatterned resonator
SiO₂60 nm spacer
Ag GROUND40 nm reflector

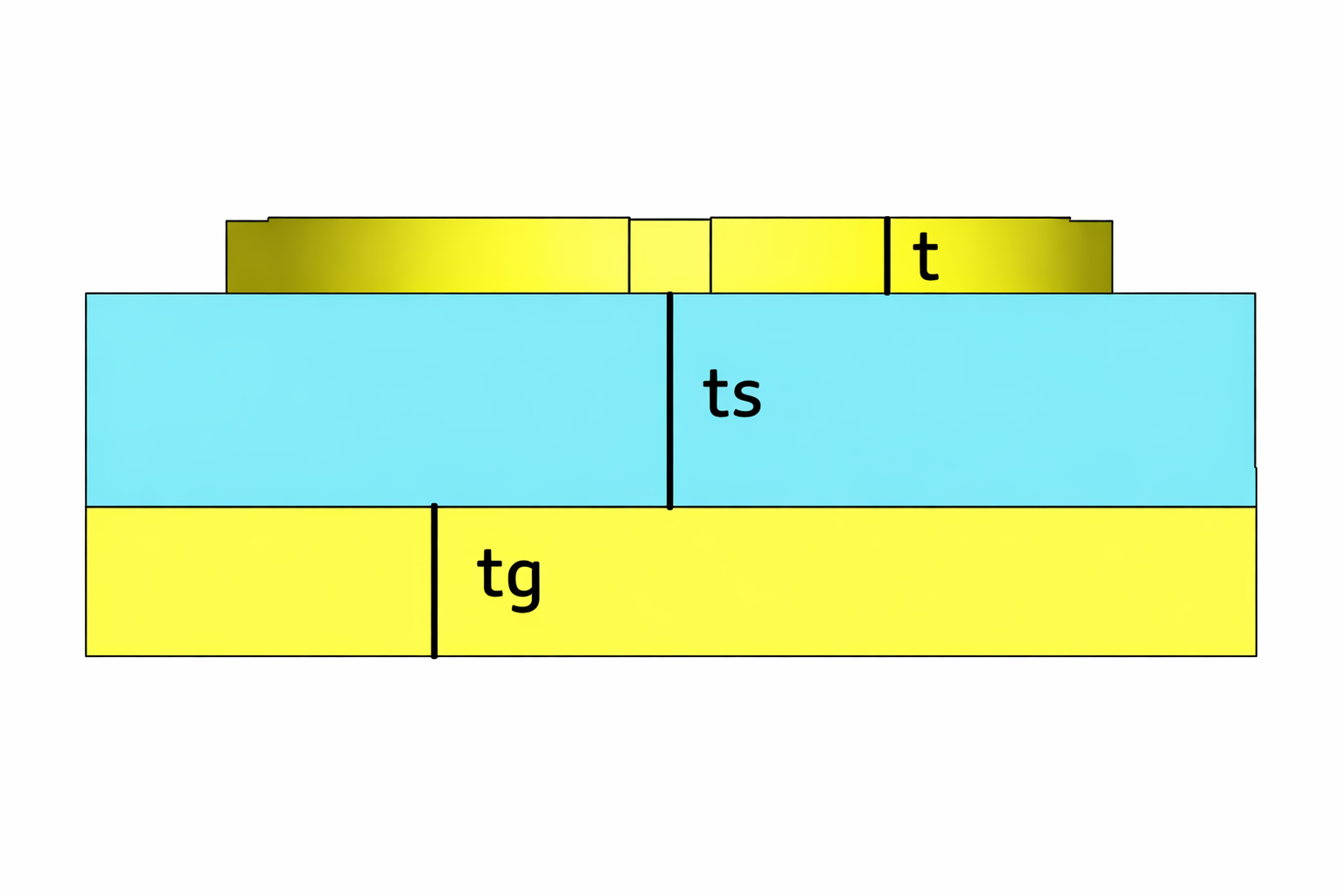

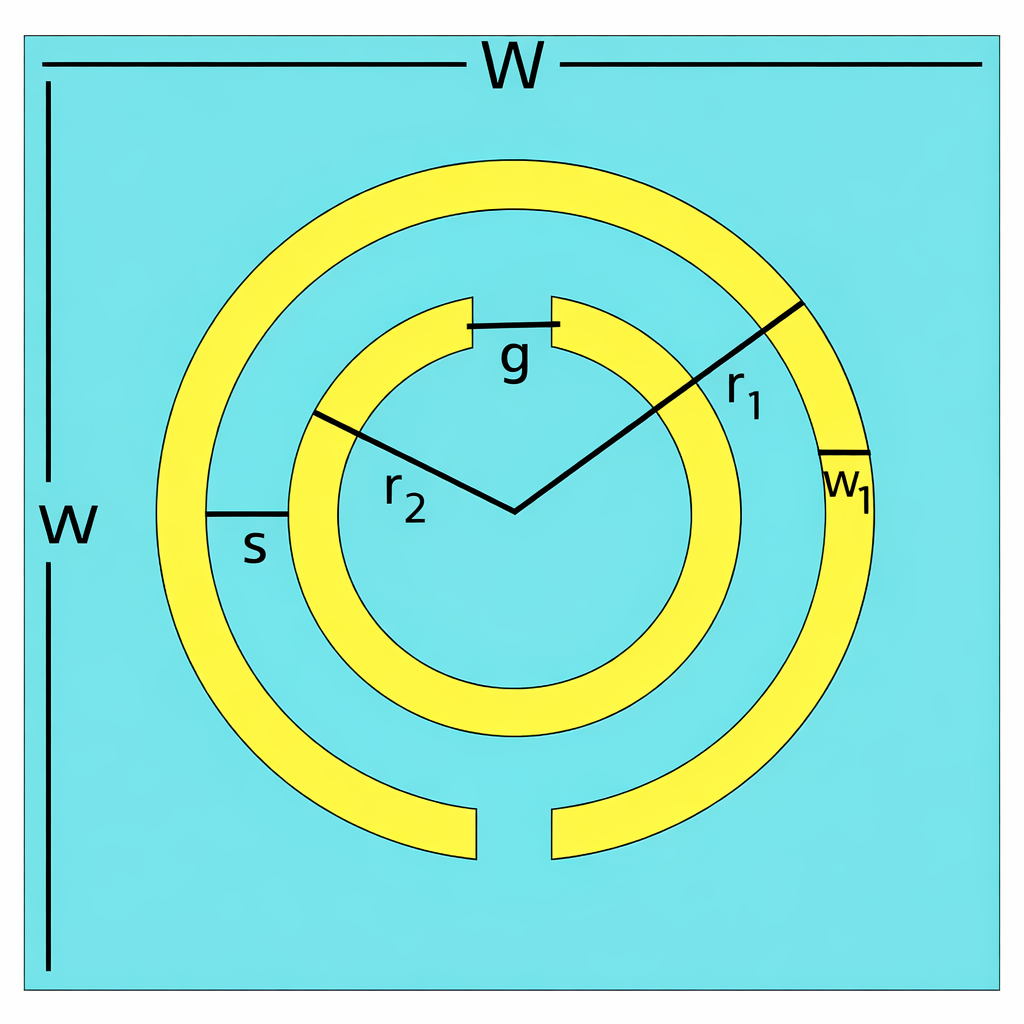

LIVE GEOMETRYr₁ 128 · r₂ 80 nmg₁ / s / t = 32 nm
MOVE CURSOR · CLICK THE RESONATOR
OPTICAL FIELD ACTIVESILVER DSRR / SiO₂ / SILVER GROUNDSELECT FREQUENCY TO MORPH GEOMETRY
03
GEOMETRICAL SCALING
The dimensions behind four optical bands.
The spacer and ground thicknesses remain fixed while the lateral DSRR geometry is scaled. The 831 THz case keeps W at 288 nm while using the smaller ring dimensions reported for the high-frequency design.
Parameter
423 THz
518 THz
640 THz
831 THz
W (nm)
288
230.4
180
288
r₁ (nm)
128
102.4
80
80
r₂ (nm)
80
64
50
50
w₁ (nm)
16
12.8
10
10
g₁ (nm)
32
25.6
20
20
s (nm)
32
25.6
20
20
t (nm)
32
25.6
20
20
ts (nm)
60
60
60
60
tg (nm)
40
40
40
40
04
S-PARAMETERS + ABSORPTIVITY
Four targets. Four strong absorption responses.

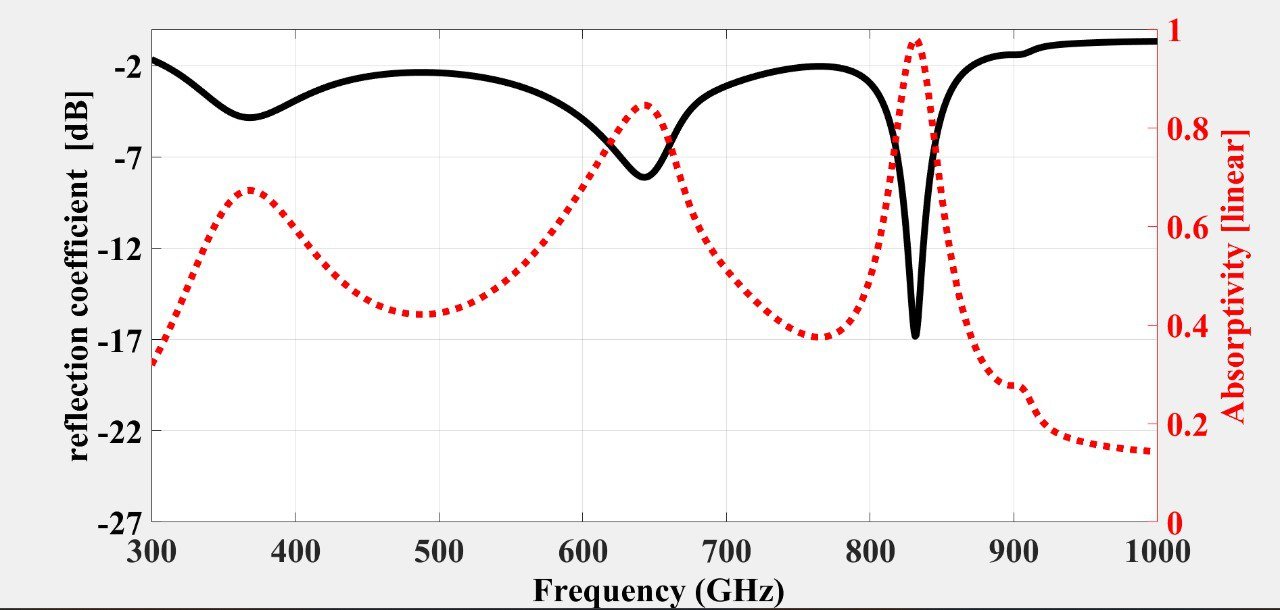

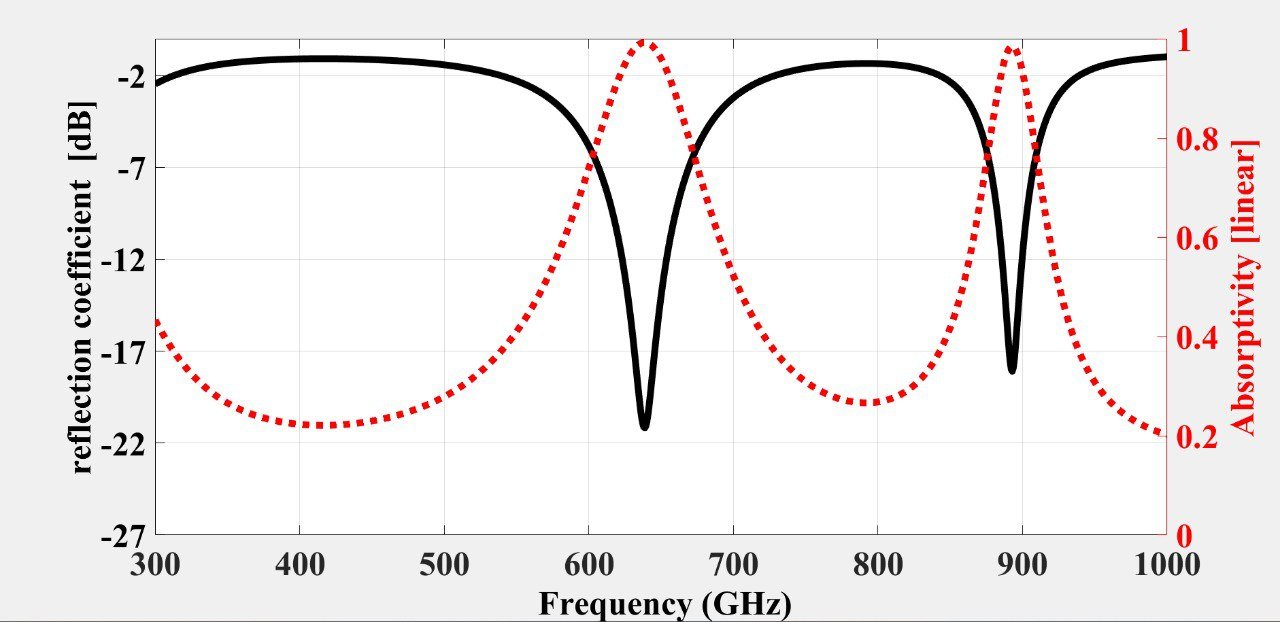

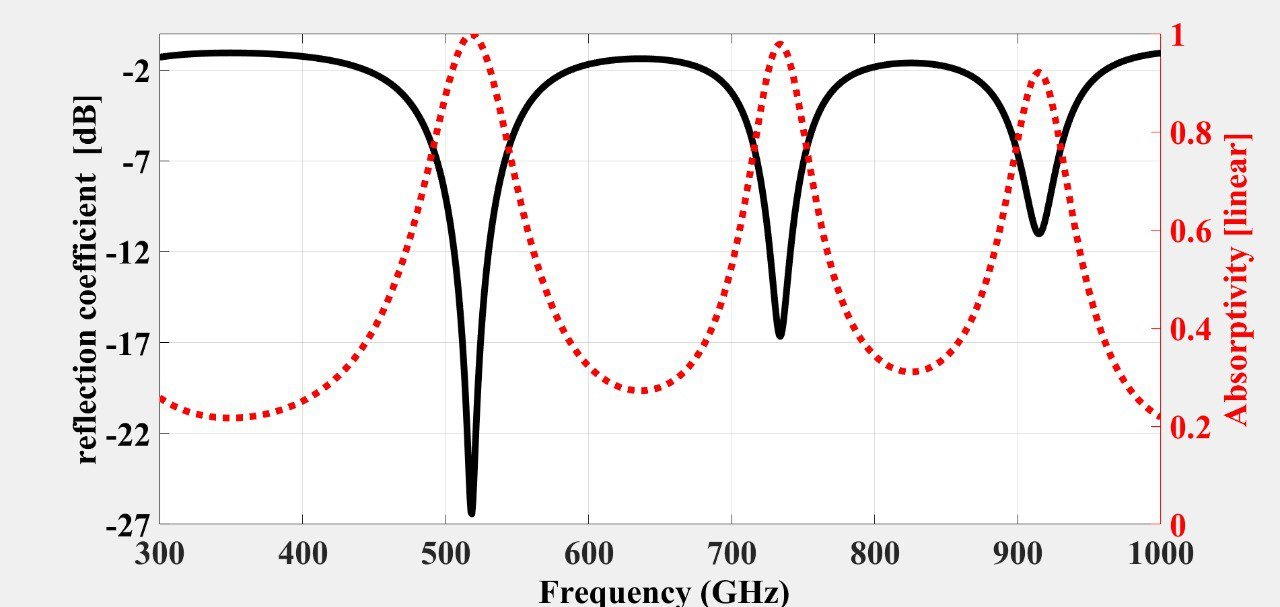

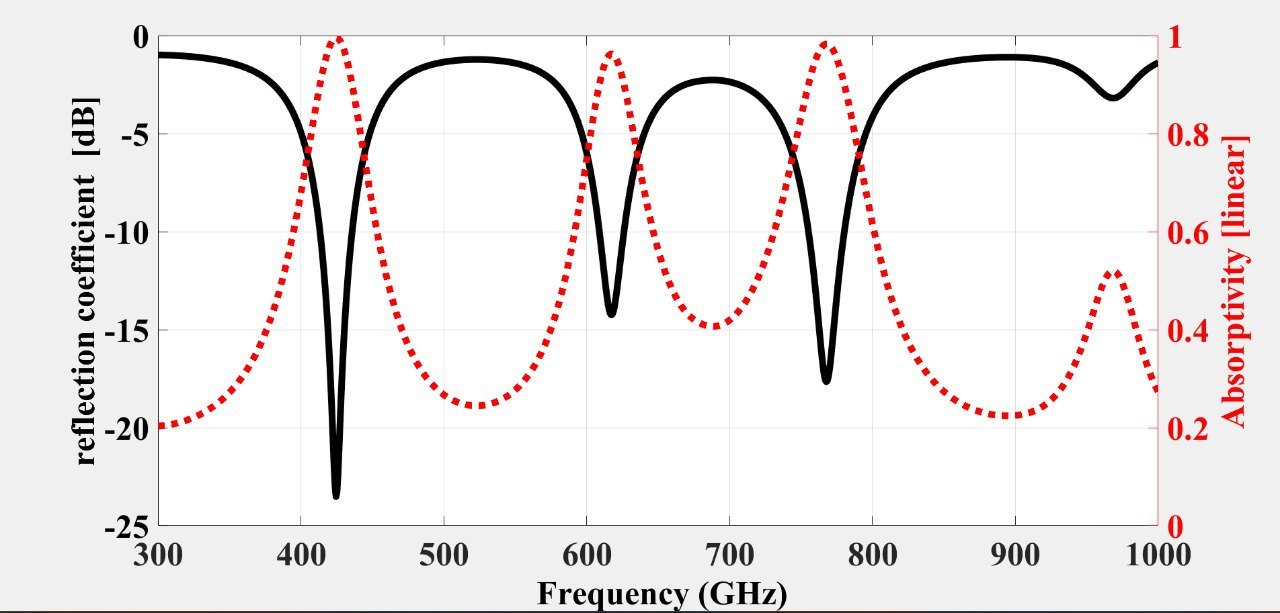

With the metallic ground plane making transmission approximately zero, absorptivity is evaluated from the reflection response. The simulated curves show deep S11 minima at the designed resonances and absorption approaching 100%.

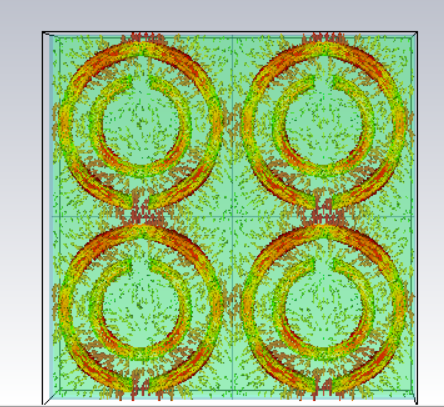

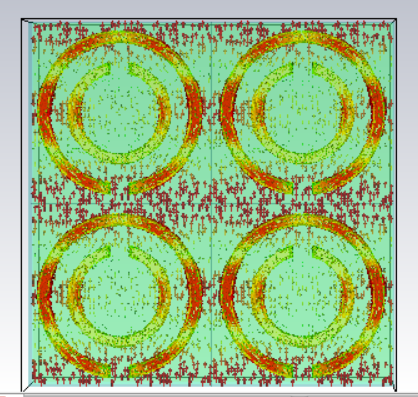

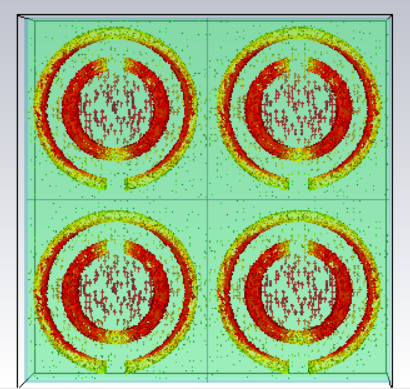

Current concentration around the split rings confirms the resonant behavior. The lower-frequency design also supports higher-order modes produced by the ring structure and coupling between the inner and outer resonators.
The thesis went from GUC to an international conference.
The work was formally invited for in-person presentation at the 13th International Conference on Electrical and Electronics Engineering (ICEEE 2026), held in Antalya, Turkey, April 27–29, 2026. The certificate records the delivery of the presentation under paper ID B4194.
Presenting the DSRR optical metamaterial absorber at ICEEE 2026ICEEE 2026 conference program · AntalyaConference session · Antalya, Turkey
07
OFFICIAL DOCUMENTS
Invitation. Presentation. Certificate.

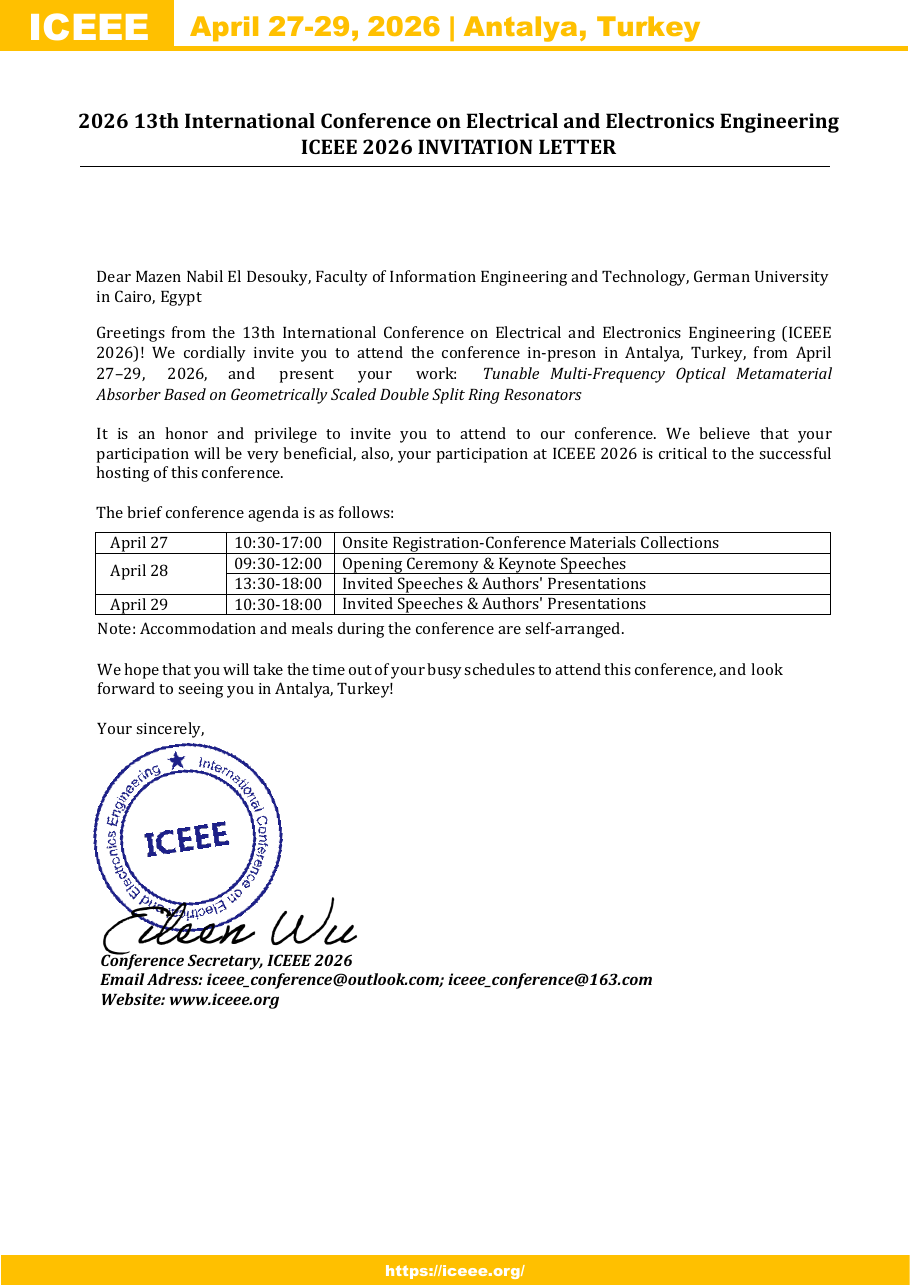

The invitation names the research work and invites its in-person presentation in Antalya. The certificate confirms attendance and delivery of the presentation.
